USB Type-C插座,插頭和電纜和現有的USB連接相比,提供更小更薄和更可靠的連接.USB Type-C解決方案目標應用在各種平臺如筆記本電腦,PC,智能手機,平板電腦等.本文介紹了USB Type-C主要特性,框圖和USB Type-C解決方案主要特性,系統級框圖和系統級功能框圖,以及USB CD/PD充電器框圖,電路圖和材料清單,USB CD/PD PHY主/從框圖,電路圖和材料清單以及USB CD/PD主/從框圖,電路圖和材料清單.
The USB Type-C receptacle, plug and cable provide a smaller, thinner and more robust alternative to existing USB interconnect. This new solution targets use in a variety of platforms, ranging from notebooks, PCs and monitors to smartphones and tablets, where existing Standard-A and Micro-AB receptacles are deemed too large, difficult to use, or inadequately robust. The USB Type-C plug enhances ease of use by being pluggable in either upside-up or upside-down directions and in either direction between host and　devices.Determination of this hosttodevice relationship is accomplished through a Configuration Channel(CC)that is connected through the cable. These various solutions demonstrate the capabilities of the Lattice device as USB 3.1 Power Delivery and Type-C ASSP.
The solution include a DRP (dual-role port) function, hence it can be used as both DFP/Host/Source and　UFP/Device/Sink after role resolution.One of the most important features of USB Type-C is the reversible nature of the connector and plug. This design also provides the provision to control a Super Speed switch required for data channel alignment/orientation management. Lattice PD controller can control both the SS (Super Speed Switch) and the HS (High Speed Switch) providing a seamless interface with Type C connector without any intervention from the main processor. The USB PD specifications have another exciting functional extension using the Type-C connector known as Alternate Modes. Lattice PD controller provides support for Structured VDM (Vendor Defined Messages)to handle these alternate modes like VESA Display Port over Type-C.

USB Type-C主要特性:
• Three solutions cover majority of USB Type-C Power Delivery (PD) and Cable Detect (CD) applications:
— CD/PD for charger
— CD/PD-Phy for hosts/device
— CD/PD for hosts/device
• Logical based PHY provides fast deterministic response and low power,typical solution power is 7 mW
• Standby power less than 100 uW
• Flexible 8-Bit uC policy engine enables easy modifications
• Support for fast development
— Industry proven solutions reduce design risk
— Schematics and BOMs available to minimize system design effort
• Wide range of packages to match PCB technology
— 36 WLCSP
— 48 QFN
— 36 ucBGA
— 81 ucBGA
• Ultra-small form factor, as small as 2.078 mm X 2.078 mm
• USB Type-C PHY
• USB Type-C Cable Detect(CD)support per USB Cable and Connector Specification
• USB Power Delivery(PD) support per Power Delivery Specification

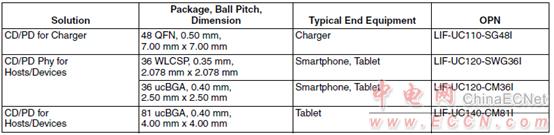

USB Type-C器件表:

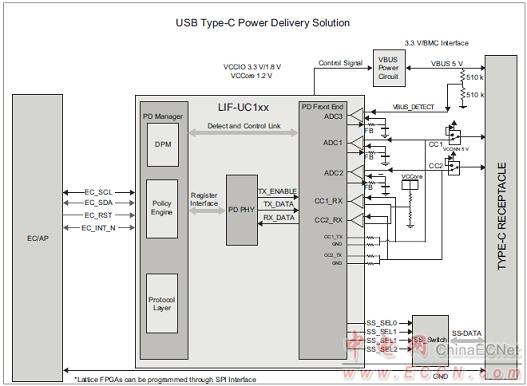

圖1.USB Type-C物理層和電源檢測協議高級功能框圖
USB Type-C enables products to provide faster charging, faster downloads and support other standards such as DisplayPort and MHL over Type-C. Lattice Type-C solutions provide Cable Configuration (CC), Power Delivery (PD) communication required to unlock these benefits. Some parts include integrated switches to simplify the implementation of video output.

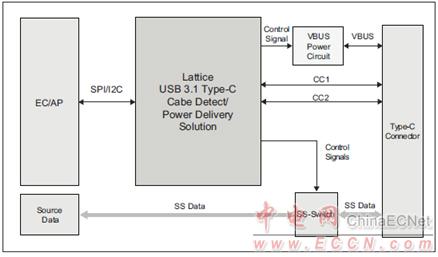

圖2.USB Type-C解決方案外形圖

USB Type-C解決方案主要特性:
Cost optimized CC/PD-PHY options
Fully integrated CC/PD full stack options
Standby power as low as 150uW
Integrated USB3.1 and video switch options
FPGA options allow full customization
ASSP options minimize discrete component requirements
This design document describes the following USB Type-C Cable Detect (CD) and Power Delivery (PD) solutions:

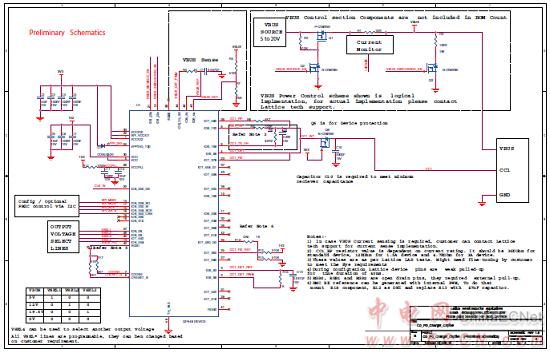

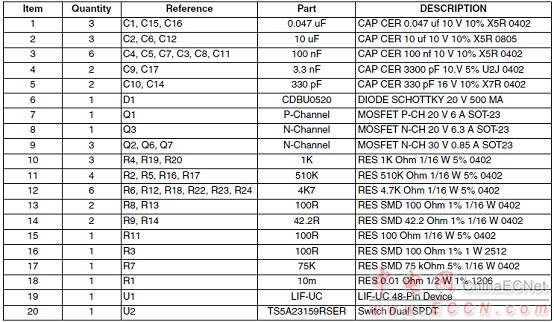

• CD/PD for charger

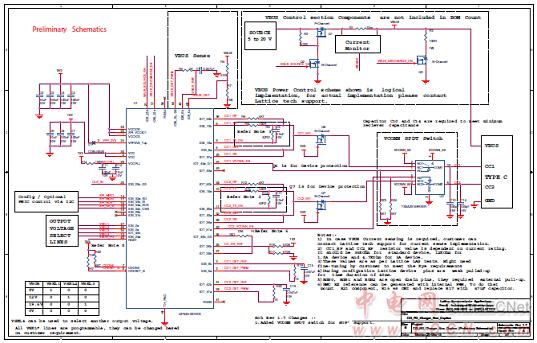

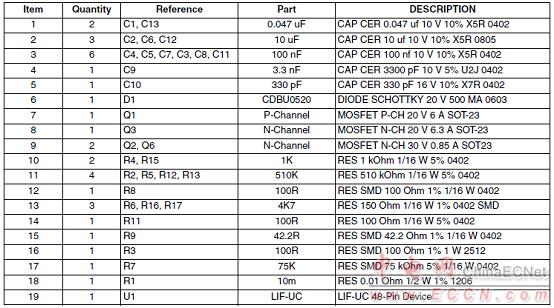

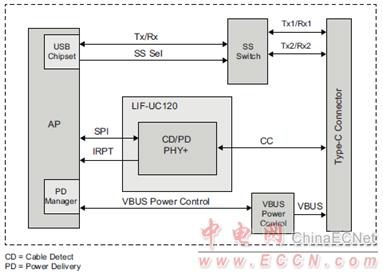

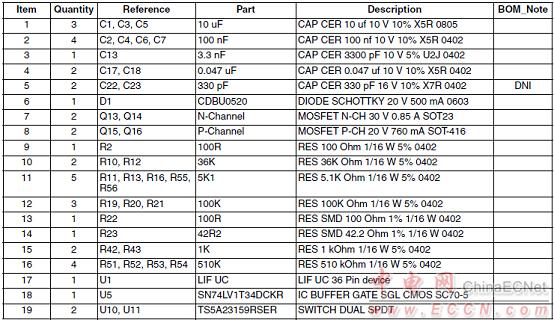

• CD/PD PHY for hosts/devices

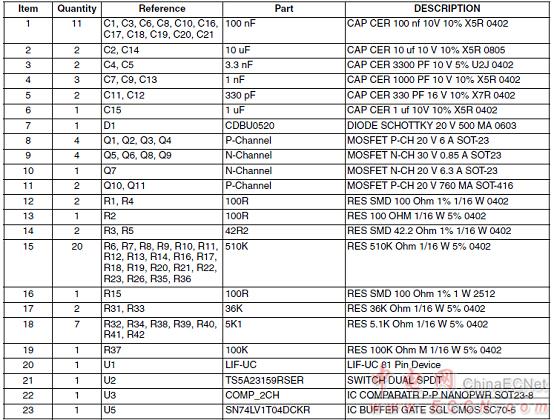

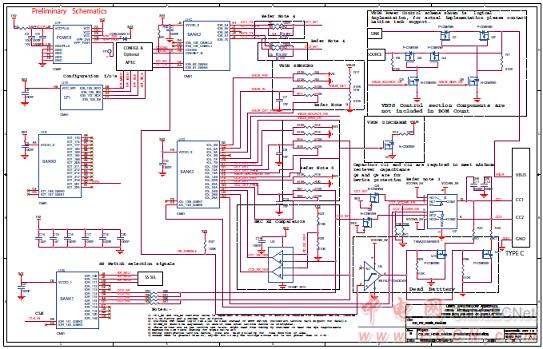

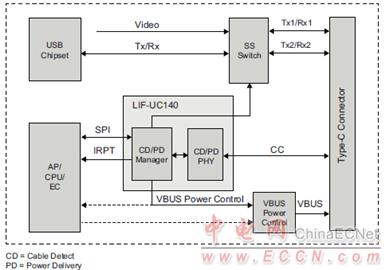

• CD/PD for hosts/devices

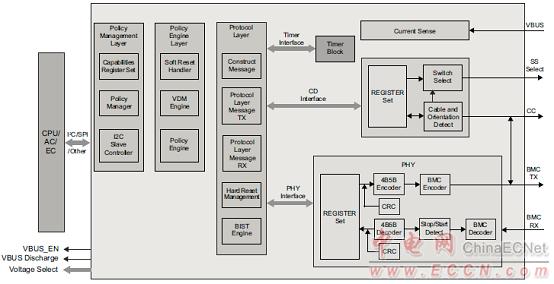

CD/PD for charger uses part of the modules explained in the Module Level Diagram of Lattice USB 3.1 Type-C Solution section and 8 Bit controller based implementation as explained in the Lattice USB 3.1 Type-C Solution with Micro-controller (MICO8) section.
CD/PD PHY for hosts/devices has the PHY (see the PHY section) implemented in Lattice Device and PD Protocol implemented in Application Processor as explained in the Lattice USB 3.1 Type-C Solution with an Application Processor section. For CD/PD for hosts/devices, refer to the Module Level Diagram of Lattice USB 3.1 Type-C Solution section.
The Lattice USB Type-C solution is designed to provide bidirectional configuration channel signals (CC1/CC2) to the Type-C connector. The solution also provides VBUS power circuitry control signal and Super- Speed (SS) switch control signals.
